CyberScope®

Edge Network Vulnerability Scanner

CyberScope empowers you to quickly discover, identify, and test edge infrastructure and IoT, OT, and ICS devices, wired (Ethernet/Fiber) and WiFi networks, then assess cybersecurity posture against policies, generate reports and perform ongoing monitoring—all without deploying agents.

  • Validate edge infrastructure hardening, including wireless access point security
  • Verify secure baselines, rapidly identify deviations
  • Confirm wired and WiFi security
  • Automate network discovery and vulnerability scanning

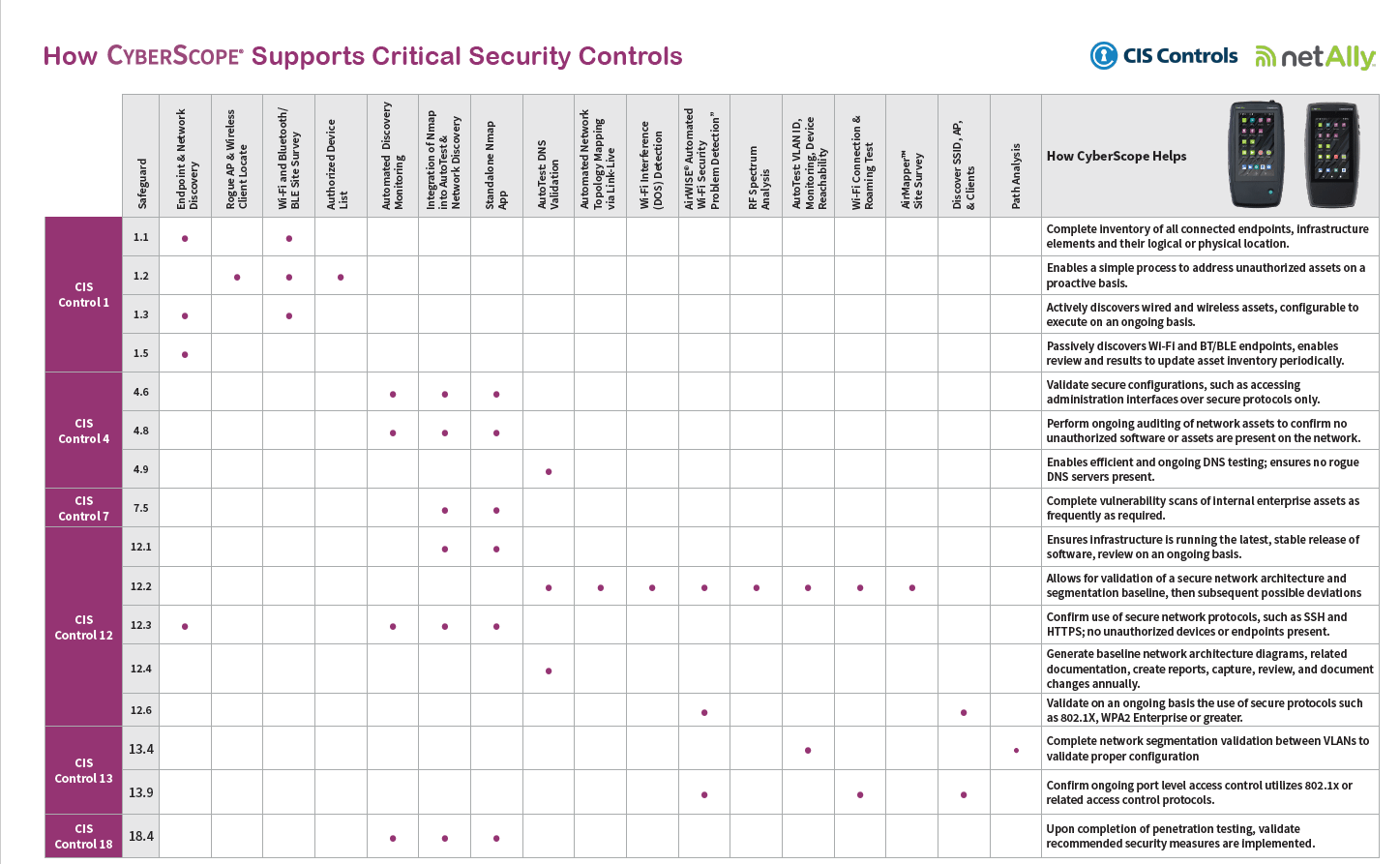

  • Maps to key CIS Critical Security Controls / NIST Cybersecurity Framework Core Functions

CyberScope is built on the entire network testing (layer 1 to 7) foundation of EtherScope® nXG plus an extensive additional list of unique cybersecurity vulnerability scanning features.

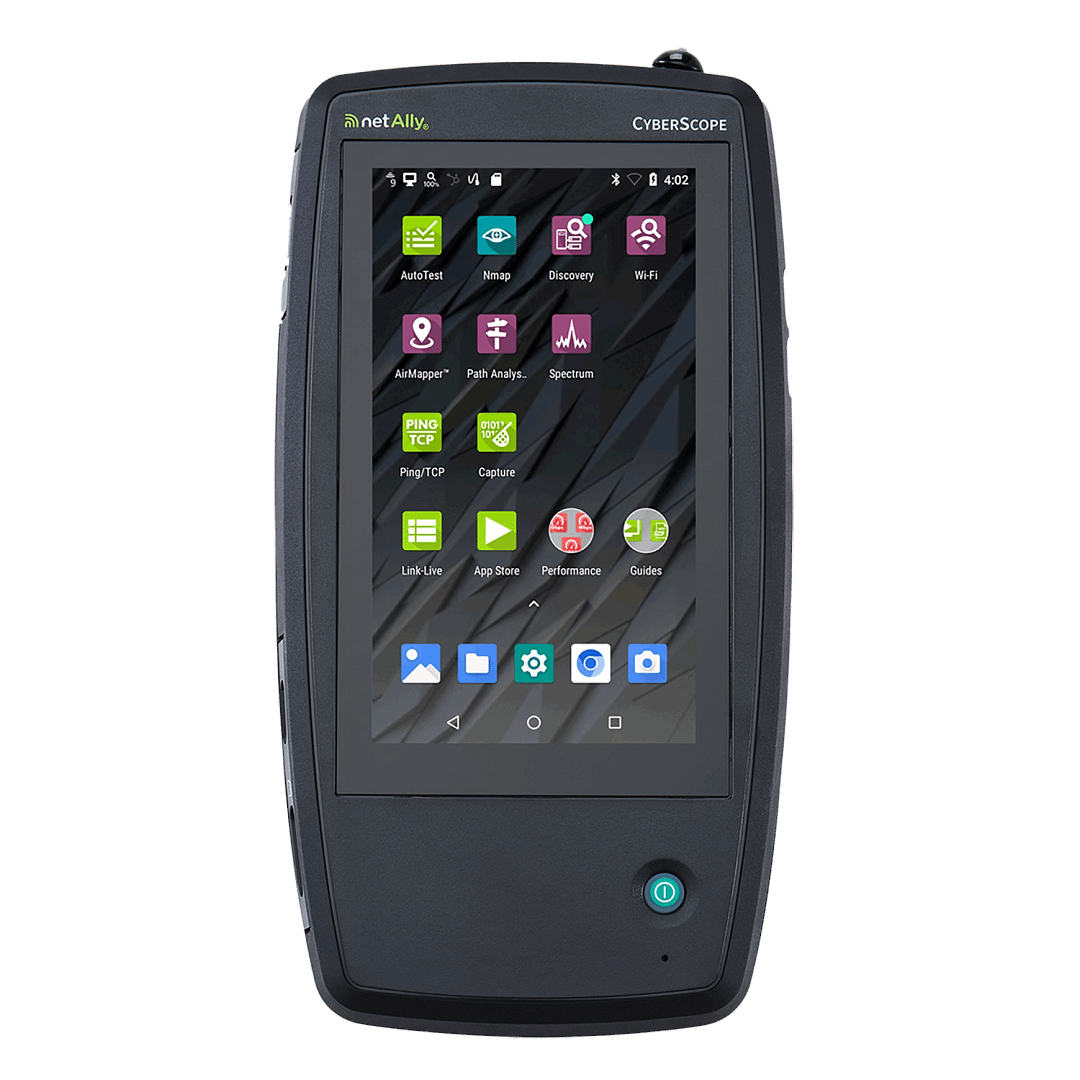

  • Portable, handheld form factor – Easy to use or send anywhere; delivers a unique view that cannot be replicated by centralized platforms or agents
  • Discovery with integrated vulnerability scanning – Quickly inventory infrastructure and /IoT/OT/ICS devices, locate rogue assets, scan for vulnerabilities with integrated Nmap technology, and compare against baselines
  • Simple UI / secure remote access – Valuable for all staffing levels; expert staff can remotely assist from anywhere
  • Integration of Nmap with AutoTest – Perform automated tests to validate infrastructure hardening including SNMP, HTTPS, SSH, management VLAN, and network segments and scan for vulnerabilities
  • WiFi security validation – Supports WiFi 2.4, 5 and 6 GHz bands, offers numerous advanced cybersecurity capabilities to test for presence and use of wireless attributes (WiFi PMF/Personal/Client Isolation, mDNS/ ZeroConf, and beaconing)
  • Automated discovery monitoring – Generate baselines, upload ongoing snapshots to Link-Live™ for fast detection of new/missing/transitory or infrastructure device/network changes
  • Link-Live collaboration, reporting, and analytics platform – Maximize team efficiencies, enhance assessments/audits, improve cybersecurity posture with the combination of CyberScope and Link-Live

IMPORTANT NOTES: WiFi 6/6E regulatory compliance implementation of the 6GHz spectrum varies by country.

CyberScope models are available in three versions: Full Tri-Band (capability across the entire 6GHz band), Partial Tri-Band (capability for only certain channels in the 6GHz band as determined by 802.11d regulatory domain information), and Dual Band Only (for countries where operation in the 6GHz band is not allowed.) Be sure to select the model that is certified for use in your specific country. Please contact your NetAlly reseller for more information.

Model/Name Description
CYBERSCOPE-CE

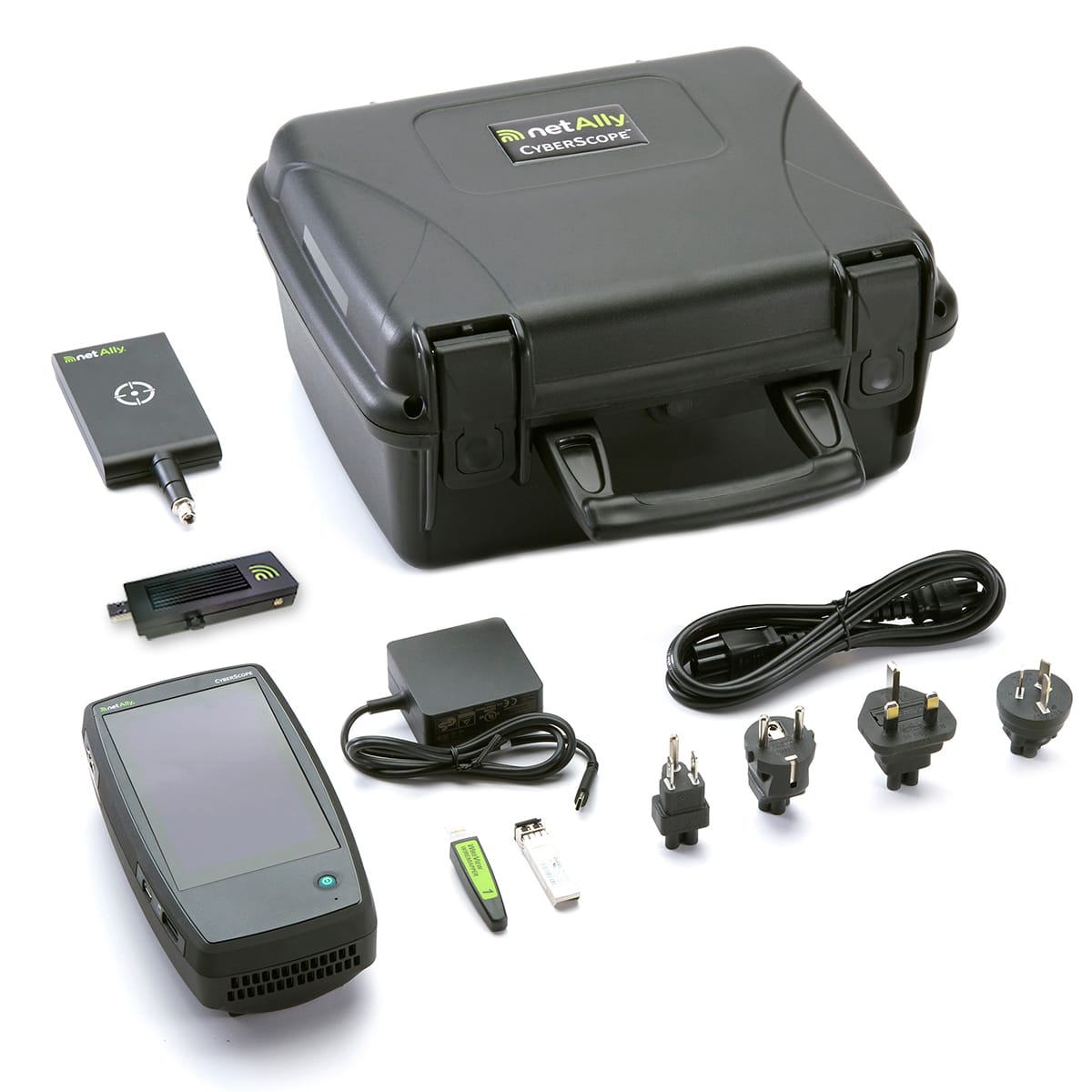

CYBERSCOPE-CE mainframe (FULL TRI-BAND) with one year of AllyCare support (CYBERSCOPE-1YS), NXT-1000 Spectrum Analyzer, G3-PWRADAPTER, SFP+MR-10G850, RJ-45 inline coupler, EXT-ANT-TRIBAND directional antenna, WIREVIEW 1, Quick Start Guide, and hardened carry case.

Click here to see kit

CYBERSCOPE-CE-E

CYBERSCOPE-CE-E mainframe (PARTIAL TRI-BAND) with one year of AllyCare support (CYBERSCOPE-1YS), NXT-1000 Spectrum Analyzer, G3-PWRADAPTER, SFP+MR-10G850, RJ-45 inline coupler, EXT-ANT-TRIBAND directional antenna, WIREVIEW 1, Quick Start Guide, and hardened carry case.

Click here to see kit

CYBERSCOPE-CE-C

CYBERSCOPE-CE-C mainframe (DUAL BAND) with one year of AllyCare support (CYBERSCOPE-1YS), NXT-1000 Spectrum Analyzer, G3-PWRADAPTER, SFP+MR-10G850, RJ-45 inline coupler, EXT-ANT-TRIBAND directional antenna, WIREVIEW 1, Quick Start Guide, and hardened carry case.

Click here to see kit

CYBERSCOPE-XRF

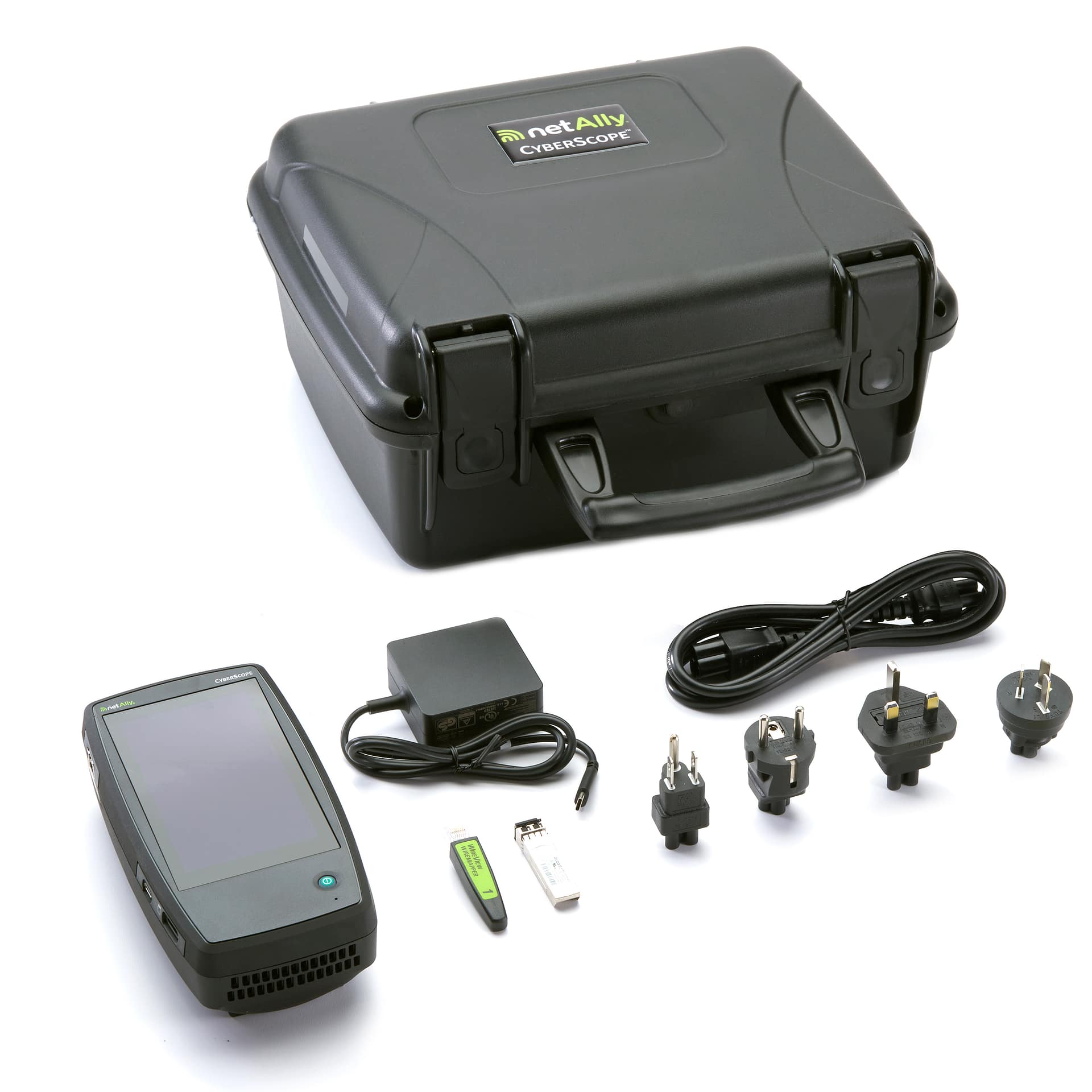

CYBERSCOPE-XRF mainframe (WIRED ONLY) with one year of AllyCare support (CYBERSCOPE-XRF-1YS), G3-PWRADAPTER, SFP+MR-10G850, RJ-45 inline coupler, WIREVIEW 1, Quick Start Guide, and hardened carry case.

Item Details
General
Dimensions
4.05 in x 7.67 in x 2.16 in (10.3 cm x 19.5 cm x 5.5 cm)
Weight
1.677 lbs. (0.76 kg)
Battery
Rechargeable lithium-ion battery pack (7.2 V, 6.4 A, 46 Wh)
Battery Life
  • Typical operating life is 3-4 hours (Battery life from full charge varies depending on the feature being used)
  • Typical charge time is 3 hours
Display
5.0-inch color LCD with capacitive touchscreen (720 x 1280 pixels)
Host Interfaces
  • (1)RJ-45 and (1)SFP Analysis ports
  • (1) RJ-45 Cable Test and Management Port RJ-45 Cable Test and Management Port
  • (1)USB Type-A Port
  • (1)USB Type-C On-the-Go Port SMA Connector (for External Directional Antenna)
Memory
Approximately 8 GB available for storing test results and user applications
Charging
USB Type-C 45-W adapter: 100-240 Vac, 50-60 Hz; DC Output Power 15 V (3 A)
Media Access
  • Copper: 10M/100M/1G/2.5G/5G/10G
  • Fiber SFP Adapters: 1G/10GBASE-X
Supported IEEE Standards
  • Wired: 802.3/ab/ae/an/bz/i/u/z
  • Wi-Fi: 802.11a/b/g/n/ac/ax
  • PoE: 802.3af/at/bt, Class 0-8 and UPOE
Cable Test
Pair lengths, opens, shorts, split-pairs, crossed, straight through, and WireView ID
Wireless
Internal Radios
  • Testing – 2×2 Tri-band 802.11ax wireless radio (IEEE 802.11a/b/g/n/ac/ax compliant)
  • Management – 1×1 Dual-band 802.11ac Wave 2 + Bluetooth 5.0 and BLE wireless radio (IEEE 802.11a/b/ g/n/ac compliant)
Specification Compliance
IEEE 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac, 802.11ax
WiFi Connectivity
802.11a, 802.11b, 802.11g, 802.11n, 802.11ac, 802.11ax
Operating Frequencies

Frequencies of channels received and transmitted:

  • 2.4 GHz band: 2.412 to 2.484 GHz (channel 1 to channel 14) *
  • 5 GHz band: 5.170 to 5.320 GHz, 5.500 to 5.700 GHz, 5.745 to 5.825 GHz (channel 36 to channel 165) *
  • 6 GHz band: 5.925 to 7.125 GHz (channel 1 to channel 233) *



(*) Where allowed by country regulations

NOTE: The tester transmits only on the frequencies allowed in the country where it is operating

Antennas
Internal WiFi Antennas
Minimum gain 2.0 dBi peak in the 2.4 GHz band, 1.5 dBi peak in the 5 GHz band, and 2.7 dBi peak in the 6 GHz band
External Direction Antennas
  • Antenna, frequency range 2.4 to 2.5 GHz, 4.9 to 5.9 GHz, and 6.0 to 7.1 GHz
  • Minimum gain 6.4 dBi peak in the 2.4 GHz band, 8.9 dBi peak in the 5 GHz band, a 8.6 dBi peak in the 6 GHz band
Environmental
Operating Temperature

32°F to 113°F (0°C to +45°C)

NOTE: The battery will not charge if the internal temperature of the device is above 95°F (35°C)

Operating relative humidity (% RH without condensation)
  • 90% (50°F to 95°F; 10°C to 35°C)
  • 75% (95°F to 113°F; 35°C to 45°C)
Storage Temperature
-4°F to 140°F (-20°C to +60°C)
Shock and Vibration
Meets the requirements of MIL-PRF-28800F for Class 3 Equipment
Safety
IEC 61010-1:2010: Pollution degree 2
Altitude
Operating: 4,000 m; Storage: 12,000 m
EMC
  • IEC 61326-1: Basic Electromagnetic Environment
  • CISPR 11: Group 1, Class A
Feature Capability CyberScope
(Wired / Wireless)
Air
(Wireless only)
XRF
(Wired only)

Endpoint & Network Discovery 1

Find & locate endpoints, device security problem ID

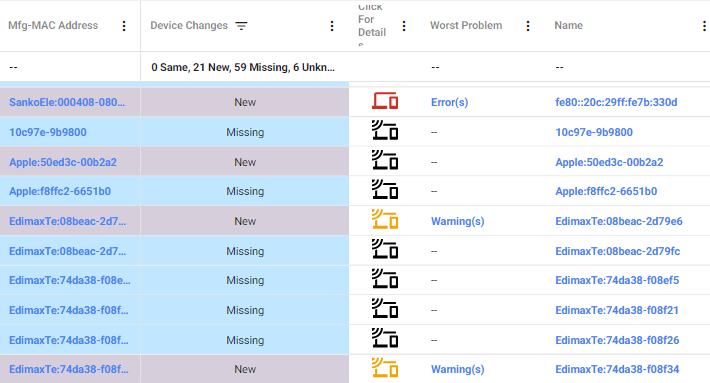

Automated Discovery Monitoring

Identify new/missing/changes in devices & networks

Automated Network Topology Mapping via Link-Live 1

Intuitive network architecture visualization

Integration of Nmap into AutoTest & Network Discovery

Vulnerability detection scanning for in-depth visibility

Standalone Nmap App

Efficient one-off Nmap scan execution

Path Analysis

Quickly trace layers 2 and 3 route to locate any device

Discover SSID, AP, & Clients

Wi-Fi security validation, identify endpoints

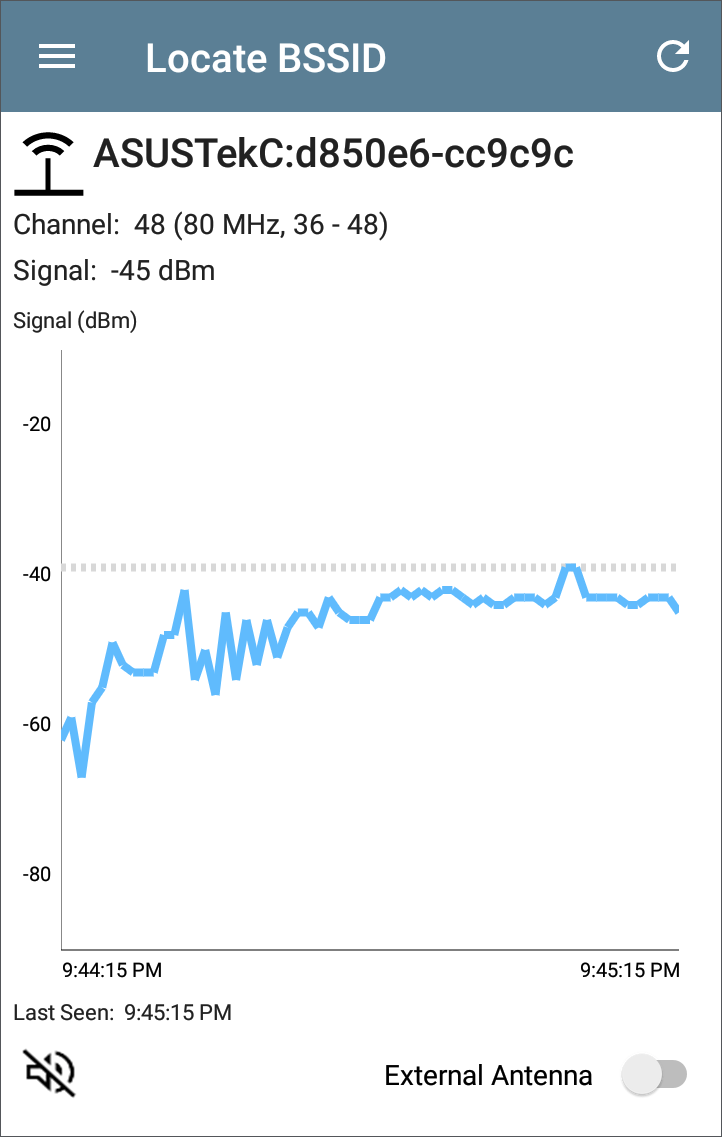

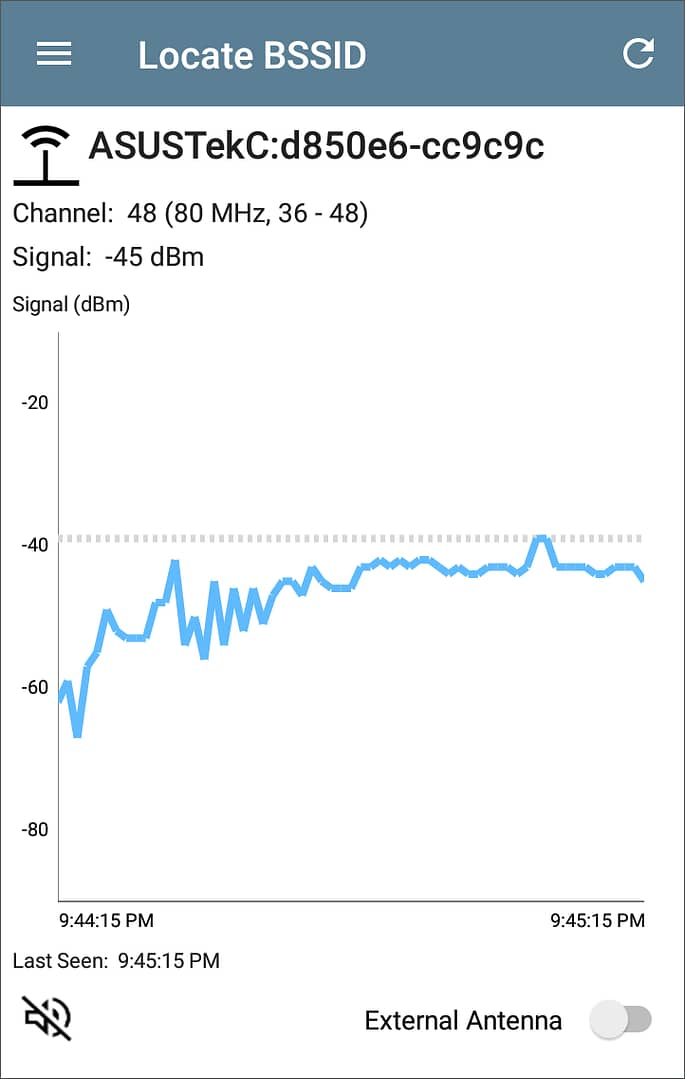

Rogue AP & Wireless Client Locate

Rapidly pinpoint physical position

Wi-Fi Site Survey

Device detection & mapping, including those from physically adjacent networks

Bluetooth/BLE Site Survey

Detection of possible illicit devices

Wi-Fi Interference (DOS) Detection

Detect possible RF-based denial of service (DOS)

AirWISE® Automated Wi-Fi security problem detection

Automated Wi-Fi security problem detection and advice

RF Spectrum Analysis

Detailed visualization across frequency bands

Portable Line Rate Packet Capture

Assured capture for forensic traffic analysis

AutoTest: DHCP, DNS, Default Gateway validation

Detects DHCP/DNS spoofing/second offers

AutoTest: VLAN ID, Monitoring, Device Reachability

Validate network segmentation; prevent lateral movement

Remote View/Control 1

Secure enterprise-wide/off-site collaboration between local staff and centralized experts

Option to Disable Functionality 2

Temporarily or permanently disable certain features to meet a variety of security needs

Network Connectivity & Performance Testing Capabilities 3

Ethernet Copper - 10/100 Mbps - 1/2.5/5/10 Gbps

Ethernet Fiber - 1/10 Gbps

Link AutoTest & nearest switch ID

Wi-Fi Connection & Roaming Test

Full views into potential connection and roaming problems

Wiremap & Toner - Cable

Connectivity validation, cable locating

AirMapper™ Site Survey 1

Perform Wi-Fi site surveys and generate heat maps in Link-Live

Ping/TCP Connect Utility

Validate and monitor responsiveness, connectivity, and port(s) state

iPerf Performance Test

Test connections to a NetAlly test accessory or server

Line Rate Performance Test (up to 10Gpbs)

Measure 10G line rate with multiple streams (requires 2 units, compatible with EtherScope® nXG and LinkRunner® 10G)

1 AirMapper enhanced site survey visualizations, Network Topology Mapping, Network Discovery, and Remote View/Control are available to customers with AllyCare-enabled support. For more information about this product’s AllyCare-enabled features please click here.

2 CyberScope allows disabling of specific product capabilities for use in secure environments.

3 Additional network test capabilities available, see EtherScope nXG.
